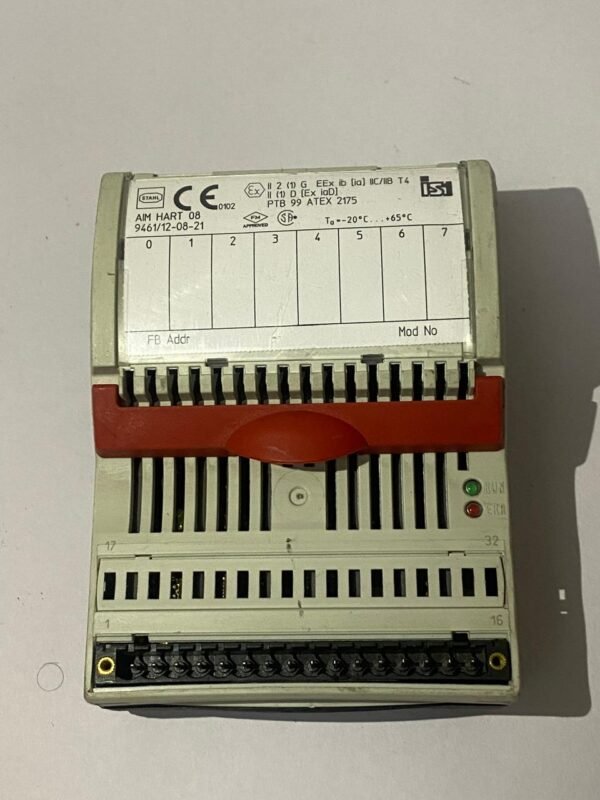

The R. STAHL AIM HART 08 (9461/12-08-21) is an intrinsically safe analog input module for the IS1 Remote I/O system. It is designed to acquire 0–20 mA or 4–20 mA signals from HART-compatible field transmitters, supporting both 2-wire and externally powered 4-wire transmitters. The module provides HART communication, galvanic isolation, individual field-circuit monitoring, and hazardous-area protection, making it suitable for process automation and instrumentation applications in potentially explosive environments.
• Brand: R. STAHL
• Product Name: AIM HART 08 Analog Input Module
• Model / Part No.: 9461/12-08-21
• Series: 9461 Series
• System: IS1 Remote I/O System
• Category: Analog Input Module (AIMH)
• Product Type: 4–20 mA HART Analog Input Module
• Number of Channels: 8
• Channel Configuration: 4 channels for 2-wire transmitters + 4 channels for 4-wire transmitters
• Signal Range: 0–20 mA / 4–20 mA
• Communication: HART
• Application: Industrial Automation, Process Control & Hazardous Areas
• Safety: Intrinsically Safe (Ex i / I.S.) Inputs
• Mounting: IS1 Remote I/O System
• Operating Temperature: −20°C to +65°C
